Screening plants
Posch is present on the market with horizontal screening machines FleXScreen, heavy piece screens for the production of armourstones and water defense stones FleXGrizzly as well as track mounted wobblers FleXRoRo for screening difficult materials.
All screening systems can be set up and dismantled using on-board hydraulics. All belt conveyors can be designed in such a way that they remain on the system during transport and therefore no lifting equipment is required to move the machines. All systems have large ground clearance. They can be moved in the area via remote control.
Track mounted mobile horizontal screen
Type SL 40 - 3
Screen area per deck: 11.6 m²
4 final granulats e.g. 0-8, 8-16, 16-56, 56-X
Output: 600 t / h
Track mounted mobile horizontal screen
Type S 40 - 3
Screen area per deck: 11.6 m²
4 final granulats e.g. 0-8, 8-32, 32-56, 56-X
Output: 600 t / h
Track mounted mobile horizontal screen
Type S 40 - 3 - S
Screen area per deck: 11.6 m²
7 final granulats e.g. 0-2, 2-32, 0-32, 0-56, 2-56, 32-56, 56-X
(With a special dosing and mixing device. These products can be manufactured without changing the screen surface)
Output: 400 t / h
Track mounted mobile horizontal screen
Type S 28 - 2
Screen area per deck: 8 m²
3 final granulats e.g. 0-16, 16-32, 32-X
Output: 400 t / h
Track mounted horizontal screen
Detailed view of the screen area here 11.6 m²

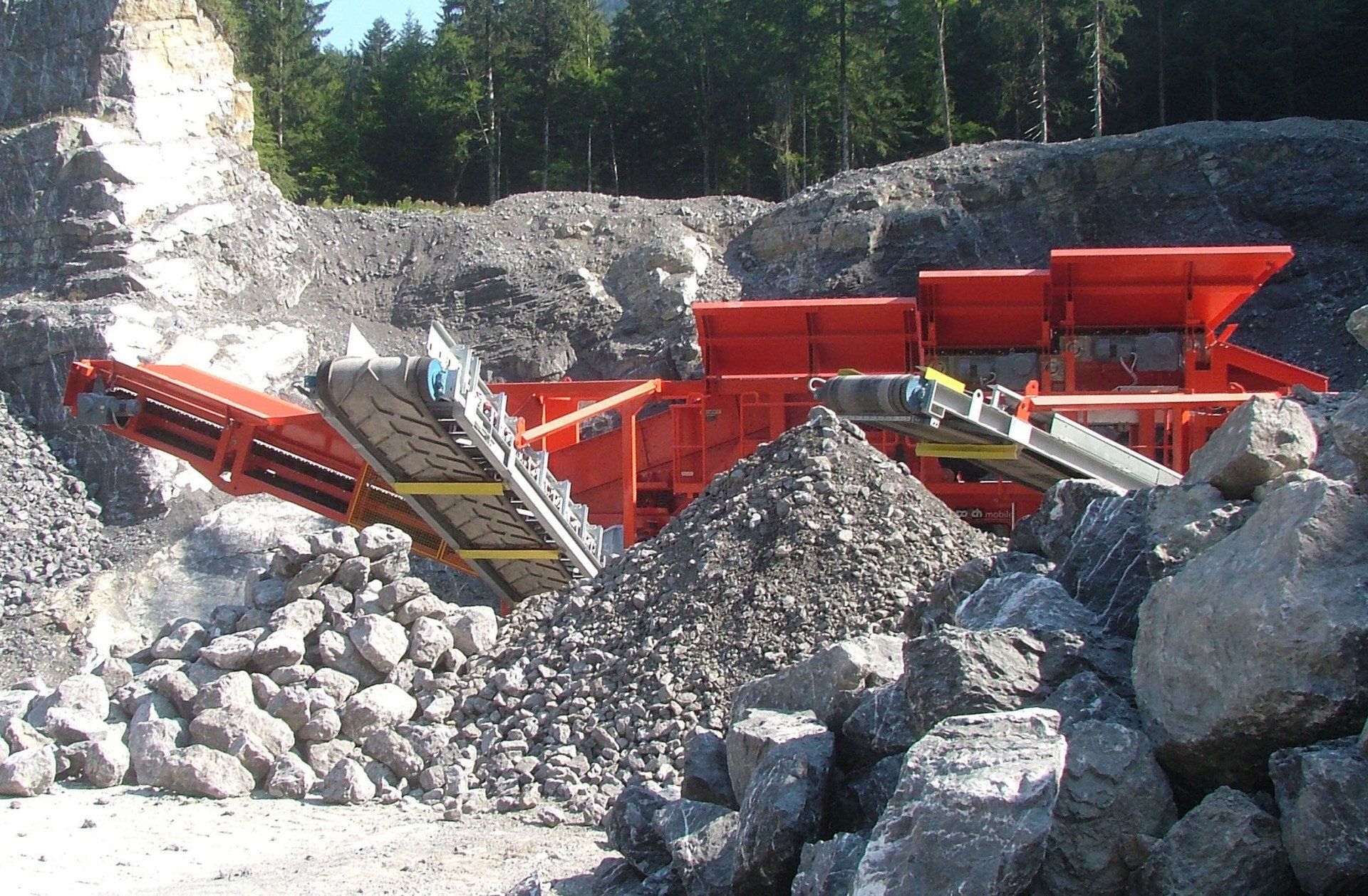

Track mounted water defense stone sorting system
Roller grate heavy duty screen
Type FlexGrizzly 12/3/2 with RoRo 10-2-10
Feed up to 1,200 mm
4 final granulats e.g. 0-150, 150-250, 250-400, 400-X
Output: 600 t / h
Movie:
Track mounted water defense stone sorting system
Roller grate heavy duty sieve
Type FlexGrizzly 12/3/2 with RoRo 10-2-10
Feed up to 1,200 mm
4 final granulats e.g. 0-150, 150-250, 250-400, 400-X
Output: 600 t / h

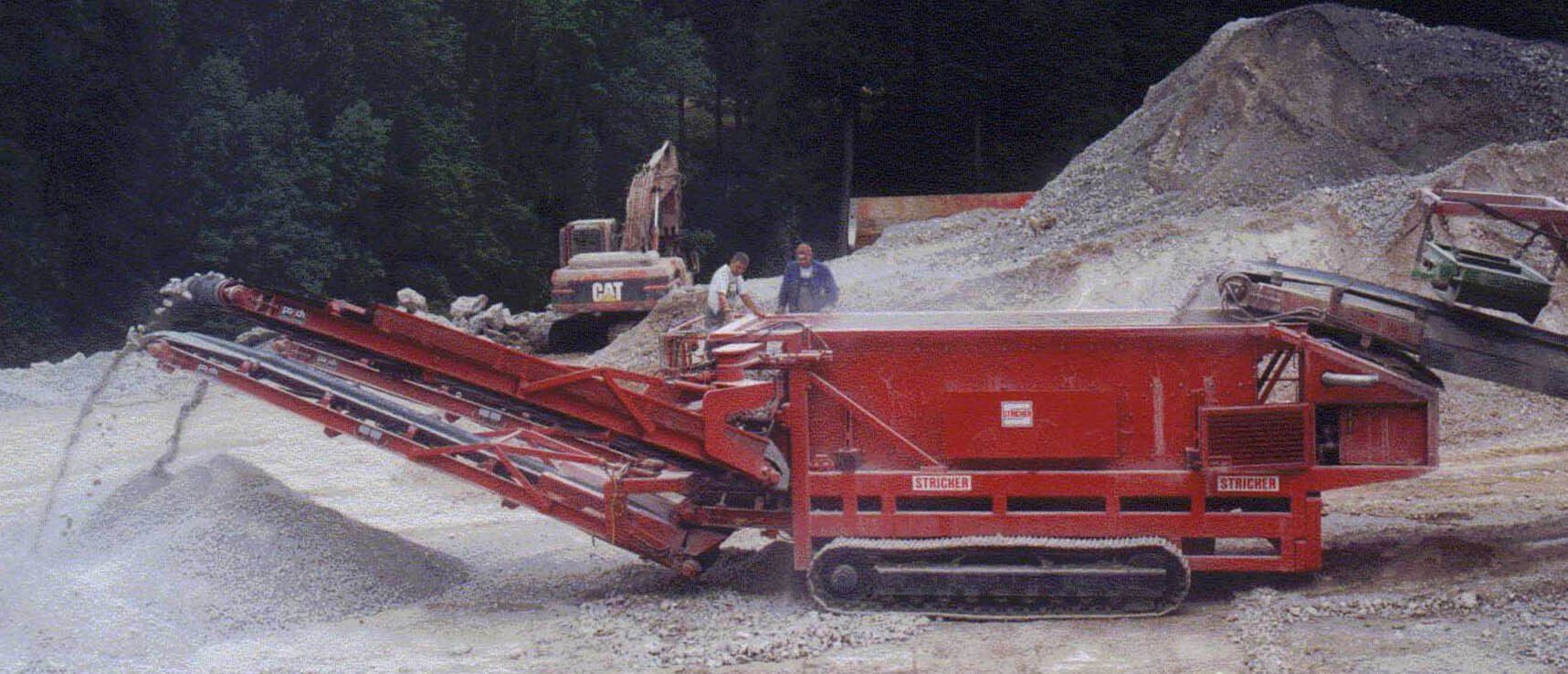

Track mounted Horizontal screening machine S28
Screen area per deck: 8 m²
3 final granulates e.g. 0-16, 16-32, 32-X
Output: 400 t / h
